产品中心PCBN车刀片

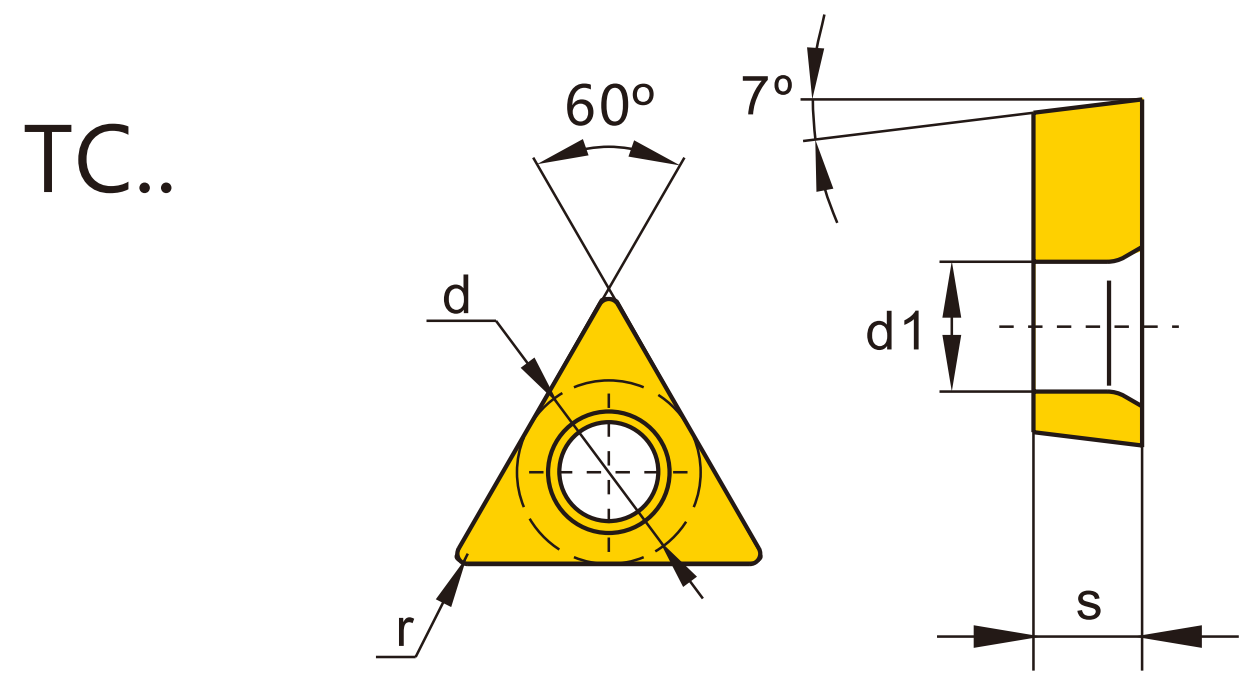

TC系列
| 型 号 Model |
尺寸 | ||
|---|---|---|---|
| d | s | d1 | |
| TC..0902.. | 5.56 | 2.38 | 2.5 |
| TC..1102.. | 6.35 | 2.38 | 2.8 |
| TC..1103.. | 6.35 | 3.18 | 2.8 |
主要参数
| 刀片外形 Insert shape |
型号 Model |
刀片材质及适用加工材料Insert grades and application | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| r | 倒棱 S02020 |
倒棱 S01525 |
KBN1000 | KBN900 | KBN910 | KBN980 | KBN710 | KBN7030 | KBN6020 | KBN610 | KBN5010 | ||
 |

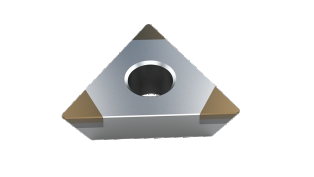

3NU-TCGW090202 | 0.2 |  |
|
 |
|
|
|
|
|
|||
| 3NU-TCGW090204 | 0.4 | |
|
|
|
|
|
|
|
||||
| 3NU-TCGW090208 | 0.8 | |
|
|
|
|
|
|
|
||||
| 3NU-TCGW110202 | 0.2 | |
|
|
|
|
|
|
|
||||
| 3NU-TCGW110204 | 0.4 | |
|
|
|
|
|
|
|
||||
| 3NU-TCGW110208 | 0.8 | |
|
|
|
|
|
|
|
||||
| 3NU-TCGW110302 | 0.2 | |
|
|
|
|
|
|
|
||||
| 3NU-TCGW110304 | 0.4 | |
|
|
|
|
|
|
|
||||
| 3NU-TCGW110308 | 0.8 | |
|
|
|
|
|
|
|
||||
 |

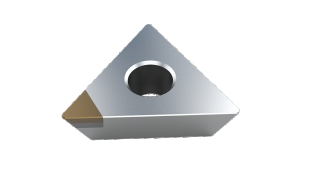

1NU-TCGW090202 | 0.2 | |
|
|
|
|
|
|
|
|||
| 1NU-TCGW090204 | 0.4 | |
|
|
|
|
|
|
|
||||
| 1NU-TCGW090208 | 0.8 | |
|
|
|
|
|
|
|
||||
| 1NU-TCGW110202 | 0.2 | |
|
|
|
|
|
|
|
||||
| 1NU-TCGW110204 | 0.4 | |
|
|
|
|
|
|
|
||||
| 1NU-TCGW110208 | 0.8 | |
|
|
|
|
|
|
|
||||
| 1NU-TCGW110302 | 0.2 | |
|
|
|
|
|
|
|
||||
| 1NU-TCGW110304 | 0.4 | |
|
|
|
|
|
|
|
||||
| 1NU-TCGW110308 | 0.8 | |
|
|
|
|
|
|
|
||||
 |
T3NU-TCGW090202 | 0.2 | |
|
|
|
|
|
|
|
|||
| T3NU-TCGW090204 | 0.4 | |
|
|
|
|
|
|
|
||||
| T3NU-TCGW090208 | 0.8 | |
|
|
|
|
|
|
|
|
|||
| T3NU-TCGW110202 | 0.2 | |
|
|
|
|
|
|
|
|
|||
| T3NU-TCGW110204 | 0.4 | |
|
|
|
|
|
|
|
|
|||
| T3NU-TCGW110208 | 0.8 | |
|
|
|
|
|
|
|
|
|||
| T3NU-TCGW110302 | 0.2 | |
|
|
|
|
|
|
|
|
|||
| T3NU-TCGW110304 | 0.4 | |
|
|
|
|
|
|
|
|
|||
| T3NU-TCGW110308 | 0.8 | |
|
|
|
|
|
|
|
|
|||
| 铸铁Cast Iron |  |
|
|
|
|||||||||
| 耐热合金Heat Resistant Alloy |  |
||||||||||||
| 淬硬钢Hardened Steel | |
|
|
|
|
||||||||
- 首选Preferred
- 可选optional
- 标准库存standard stock
- 订单生产order production
